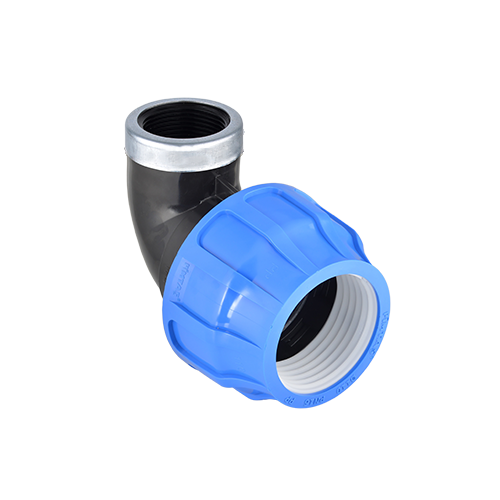

Acoplamiento Codo hembra con anillo metálico

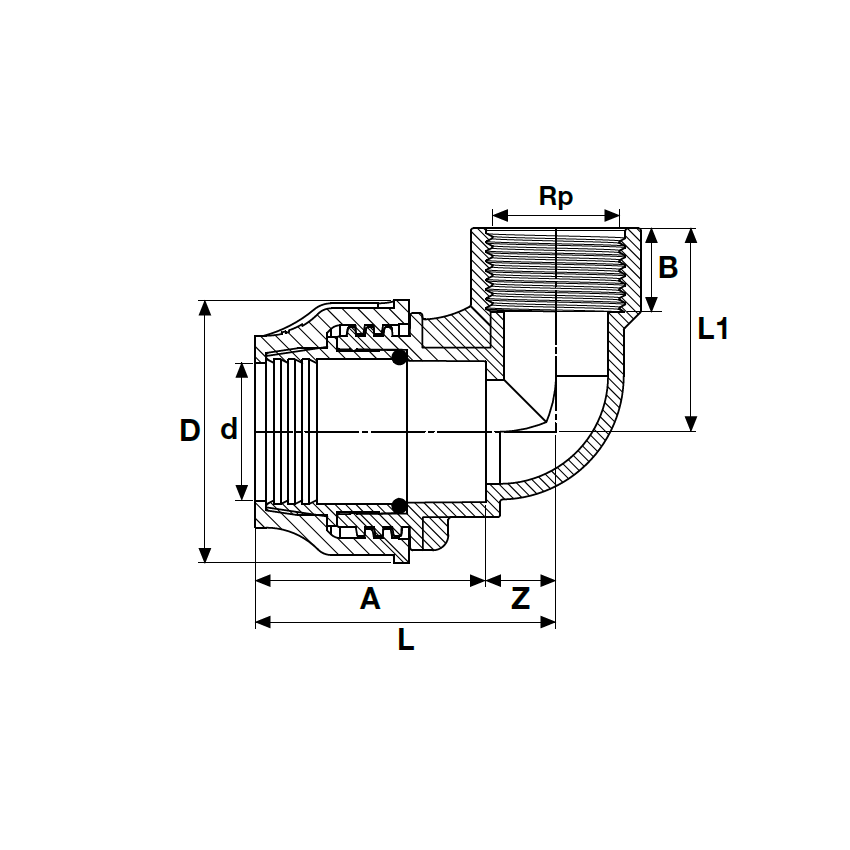

| ÇAP/DIA | (PN) | KOD/CODE | A / Z (MM) | L / L1 (MM) | B (MM) |
| 20×1/2” | PN16 | EX70002400M | 48,5 / 11 | 59,5 / 25 | 14 |
| 20×3/4” | PN16 | EX70002401M | 48,5 / 11 | 59,5 / 25 | 15 |
| 25×1/2” | PN16 | EX70002402M | 53 /13,5 | 66,5 / 27,5 | 14 |
| 25×3/4” | PN16 | EX70002403M | 53 /13,5 | 66,5 / 28,5 | 15 |
| 25×1” | PN16 | EX70002404M | 53 /13,5 | 66,5 / 30,5 | 17 |
| 32×3/4” | PN16 | EX70002405M | 57 / 17 | 74 / 32 | 15 |
| 32×1” | PN16 | EX70002406M | 57 / 17 | 74 / 34 | 17 |
| 32×1 1/4” | PN16 | EX70002407M | 57 / 17 | 74 / 37 | 20 |
| 40×1” | PN16 | EX70002408M | 73,5 /21 | 94,5 / 38 | 17 |
| 40×1 1/4” | PN16 | EX70002409M | 73,5 /21 | 94,5 / 41 | 20 |
| 40×1 1/2” | PN16 | EX70002410M | 73,5 /21 | 94,5 / 41 | 20 |
| 50×1 1/4” | PN16 | EX70002411M | 84,5 / 26 | 110,5 / 46 | 20 |
| 50×1 1/2” | PN16 | EX70002412M | 84,5 / 26 | 110,5 / 46 | 20 |
| 63×1 1/2” | PN16 | EX70002413M | 92,5 / 32,5 | 125 / 52,5 | 20 |
| 63×2” | PN16 | EX70002414M | 92,5 / 32,5 | 125 / 56,5 | 24 |
| 75×2” | PN16 | EX70002415M | 127 / 38,5 | 165,5 / 62,5 | 24 |
| 75×2 1/2” | PN16 | EX70002416M | 127 / 38,5 | 165,5 / 66,5 | 278 |
| 90×2 1/2” | PN16 | EX70002417M | 127 / 38,5 | 205 / 74 | 28 |
| 90×3” | PN16 | EX70002418M | 159 / 46 | 205 / 76 | 30 |
| 110×3” | PN16 | EX70002419M | 185 / 56 | 241 / 86 | 30 |
| 110×4” | PN16 | EX70002420M | 185 / 56 | 241 / 92 | 36 |
